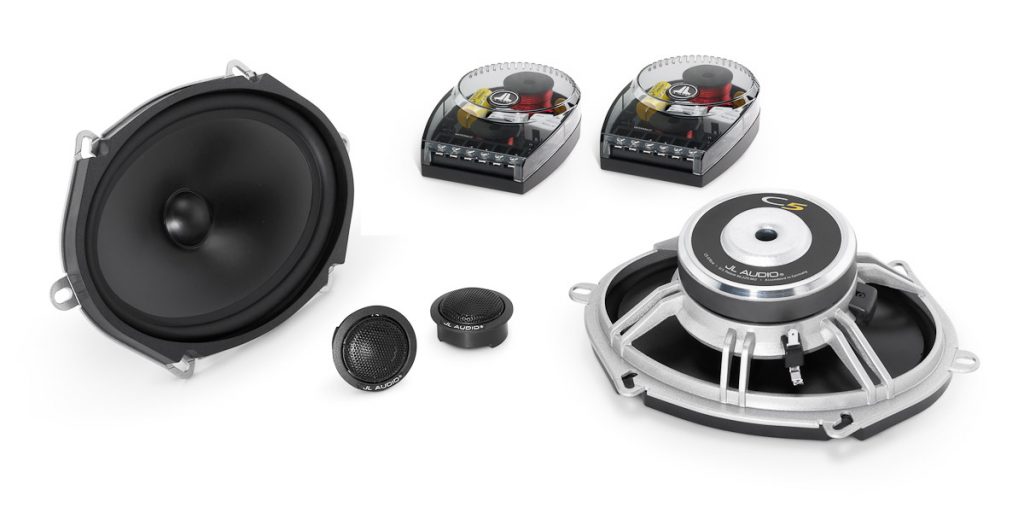

JL Audio C5-570 5 x 7 / 6 x 8-inch 2-Way Component Speaker System

Sonic character: Smooth and balanced

Description

2-Way Component System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio’s engineers have put in the time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems… guaranteed. So, don’t make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker… these ovals rock.

In the C5-570, the smoothness and transparency of a high-end silk dome tweeter combines with top-flight component woofer performance to create a loudspeaker system with exceptional refinement and dynamic capability.

The C5-570 component woofers are built using die-cast alloy baskets and Kurt Müller cones and suspensions. The woofer benefits from JL Audio’s vast woofer design experience and advanced modeling systems.

The C5 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. The flush-mount fixtures feature our RSR (Ratcheting Swivel Rotation) mechanism to allow precise tweeter aiming after installation.

C5 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

No woofer grilles are included (or available) for this system.

Sonic character: Smooth and balanced

Made in Germany, Sold as a pair.

Continuous Power Handling (RMS) 75 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 25 – 150 W / Ch.
System Efficiency 90.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 48 Hz – 25 KHz ± 3 dB
